Text to Chart API

"Text to Chart" is an experimental feature that lets you create charts using natural language.

To generate a chart, use the https://quickchart.io/natural endpoint:

https://quickchart.io/natural/green bar chart revenue Jan-Mar 50,60,70

Go to https://quickchart.io/natural/green_bar_chart_revenue_Jan-Mar_50,60,70 and you will see a chart:

A green bar chart, revenue, Jan-Mar

Add it to a webpage or email:

<img src="https://quickchart.io/natural/green bar chart revenue Jan-Mar 50,60,70" />

Or embed it as an iframe:

<iframe src="https://quickchart.io/natural/iframe/green bar chart revenue Jan-Mar 50,60,70" />

Adding your own data

You may include data in your natural language description:

https://quickchart.io/natural/red bar chart, revenue, Jan-Dec, data 30,35,38,22,48,42,63,60,71,72,64,80
A red bar chart, Jan-Dec, with some data

But unless you're creating a one-off chart, this is not an efficient approach and can lead to visual inconsistencies between multiple charts. You can solve this by re-using the chart.

How to re-use charts

The first time you create a chart from text, we automatically save it for future use. This saved chart is called a "template".

  • Using a template is much faster than updating the chart description.
  • Using a template ensures a consistent chart appearance, even when your data changes.

To use a template:

  1. Create a natural language chart with the desired look & feel.
  2. Instead of putting data directly in the description, use query parameters (such as data1) to dynamically set chart data.

For example:

https://quickchart.io/natural/red bar chart, revenue, Jan-Dec?data1=30,35,38,22,48,42,63,70,70,72,64,80&title=Financials&label1=Revenue (millions)
A red bar chart showing Revenue Jan-Dec

You'll notice this chart loads in milliseconds, not seconds, so you can generate thousands of these if you want. Also, it's guaranteed to be the same color, have the same fonts, labeling, etc. because GPT won't be rolling the dice each time.

Template parameters are added to the base template URL. Here are examples of supported template parameters:

  • title - The title of the chart
  • labels - Comma-separated labels for the label axis of a chart (usually the X axis)
  • data1, data2, ..., dataN - Comma-separated data values for each dataseries
  • label1, label2, ..., labelN - Comma-separated labels for each dataseries
info
Template are pretty flexible. Learn more about supported template parameters here.

Customizing the chart

The best way to get the chart looking the way you want is by describing what you want in natural language. Here are some examples of attributes you can set:

  • Color
  • Font size and style
  • Axis label, title, and legend appearance
  • Tick formatting
  • Type of chart
  • Axis tick range

QuickChart is built on Chart.js, but supports many built-in plugins such as annotations, data labels, radial gauges, sankey, financial charts, etc.

The chart accepts query parameters that control other aspects of its appearance:

  • width: width of the chart image, in pixels
  • height: height of the chart image, in pixels
  • backgroundColor: background color of the chart (hex, rgb, color name)

For example:

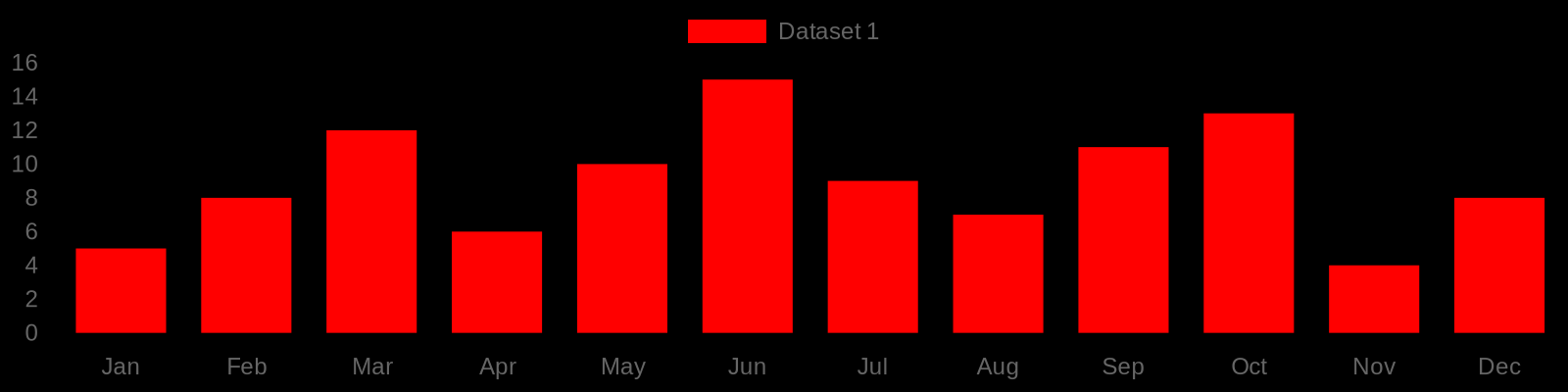

https://quickchart.io/natural/red bar chart, Jan-Dec?width=800&height=200&backgroundColor=black
A red bar chart, Jan-Dec

Embedding charts as iframes

If you prefer interactive charts, use https://quickchart.io/natural/iframe/ as a base URL. Then you can embed the chart as an iframe like this:

<iframe src="https://quickchart.io/natural/iframe/green bar chart: 22, 40, 32, 42" width="500" height="250" />

The chart above is an iframe - hover your mouse over the bars to see the interactive tooltips.

POST endpoint

The endpoint supports generating charts from an HTTP post request. Here is an example JSON payload:

{
"description": "Red line graph, solar output over 1 year by month",
"width": 500,
"height": 300,
"backgroundColor": "#fff"
}

Examples

Here are some examples of natural language charts:

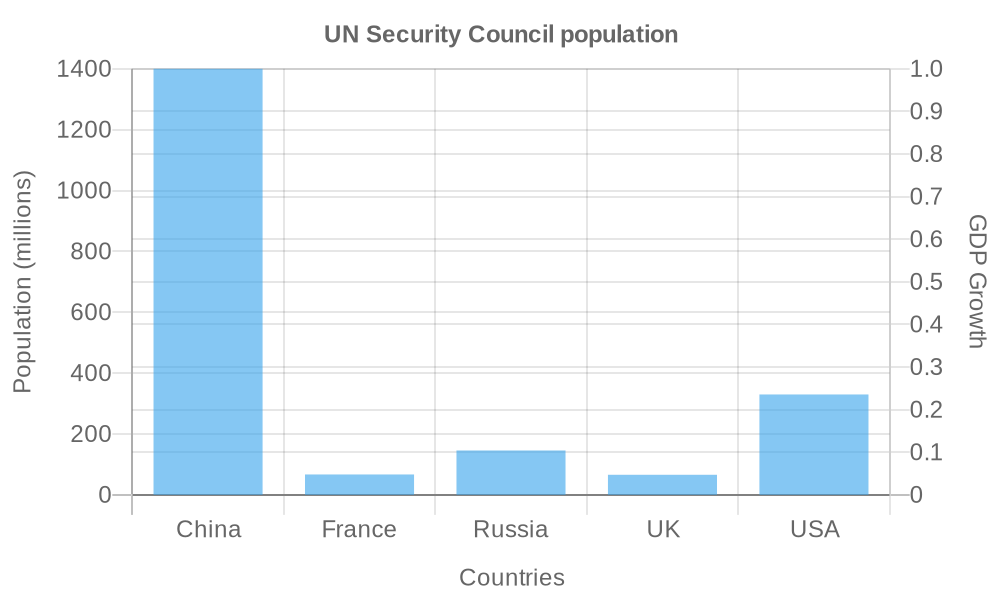

https://quickchart.io/natural/Bar chart with data labels showing population of UN security council countries, with line graph for trend line. Shorten Y axis labels using 'M' for million. Title 'UN Security Council', hide legend
Mixed graph showing UN security council countries

https://quickchart.io/natural/doughnut chart showing 10 luck, 20 skill, 15 power of will, 5 pleasure, 50 pain

https://quickchart.io/natural/Radar chart showing job applicant aptitudes ranging from 0-100, no legend

https://quickchart.io/natural/horizontal bar chart with data labels, 10 bars.  gradient from green to red top down

Remember, once you generate a chart that looks like other charts you want to generate in the future, you can override the data on it by adding ?data1=10,20,30,60... to the URL.

Tips & Gotchas

URL-encode your URLs

In general, URLs should be URL encoded. For example, % and # are special characters and need to be converted to their URL-encoded equivalents. You can use a URL encoder like this one.

For ease of use and also to make some URL parsers happy, underscores _ are substituted with spaces. If preferred, you may specify a chart like this: https://quickchart.io/natural/red_bar_chart

Check your charts

GPT sometimes generates charts that we can't render. If this is the case, you'll receive and error and your chart won't show. You'll have to tweak your chart description.

Note that chart templates are cached for a limited period of time. Be sure to make your description as precise as possible, as the chart may be regenerated.

More control over chart appearance

If you prefer finer-grained control over the appearance of your chart, you have options:

  • Create a chart configuration in the Chart Editor. You can still use the "Edit with GPT" feature to get help creating your chart and save it as a template.
  • Create a no-code chart in the Chart Builder. You can point-and-click to edit your chart's appearance and save it as a template.

Initial renders are slow, so prefer templates

GPT takes time to render charts. That's why we recommend generating a solid example chart first, and using it as a template (as described in Adding Your Own Data).

What to expect next

Better support for Gannt charts, Financial charts, custom backgrounds, gradients, and making it possible to set background color in the chart description.

Ideas? Post a suggestion in our community or message [email protected].
